BION

Prosthetics Technology

Step by step to natural-limb performance

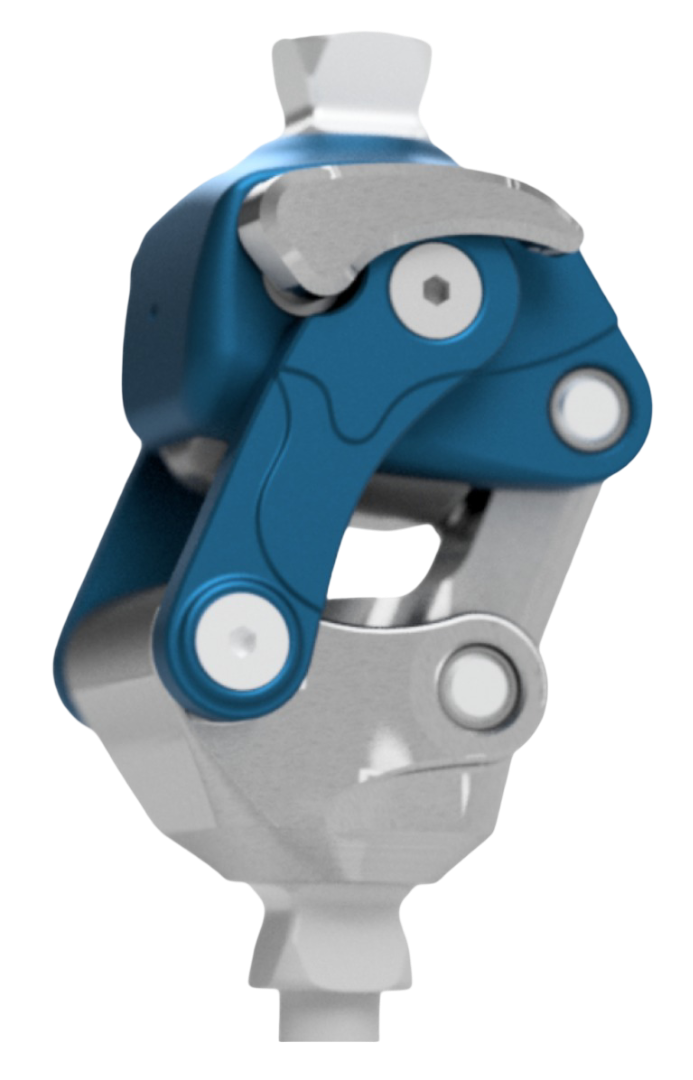

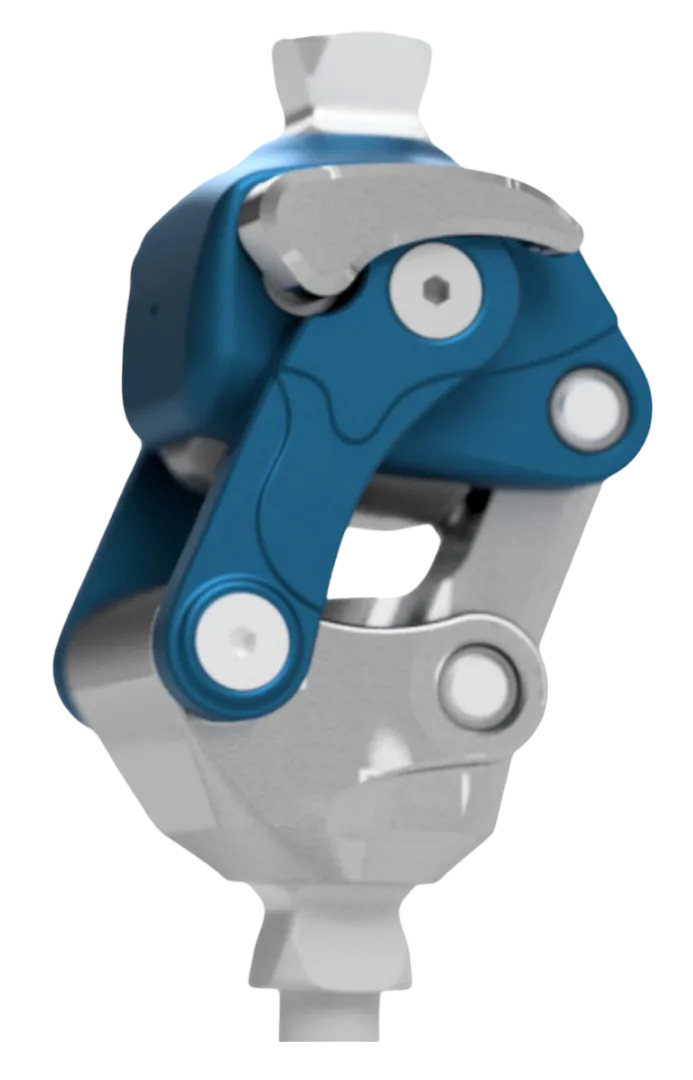

PC-1A light

PC-1A in arm

Specifications

Material: aluminum alloy.
Product weight: 480 g.
Patient weight: up to 125 kg.
Load level: R6 (ISO 10328).
Maximum flexion angle: 135°.
Build height: 76 mm.
Operating temperature range: −40 °C to +40 °C.
Service life: 2 years.
Angular adjustments: ●
Upper adapter: −7.5° to +7.5°.
Lower adapter: −5° to +5°.

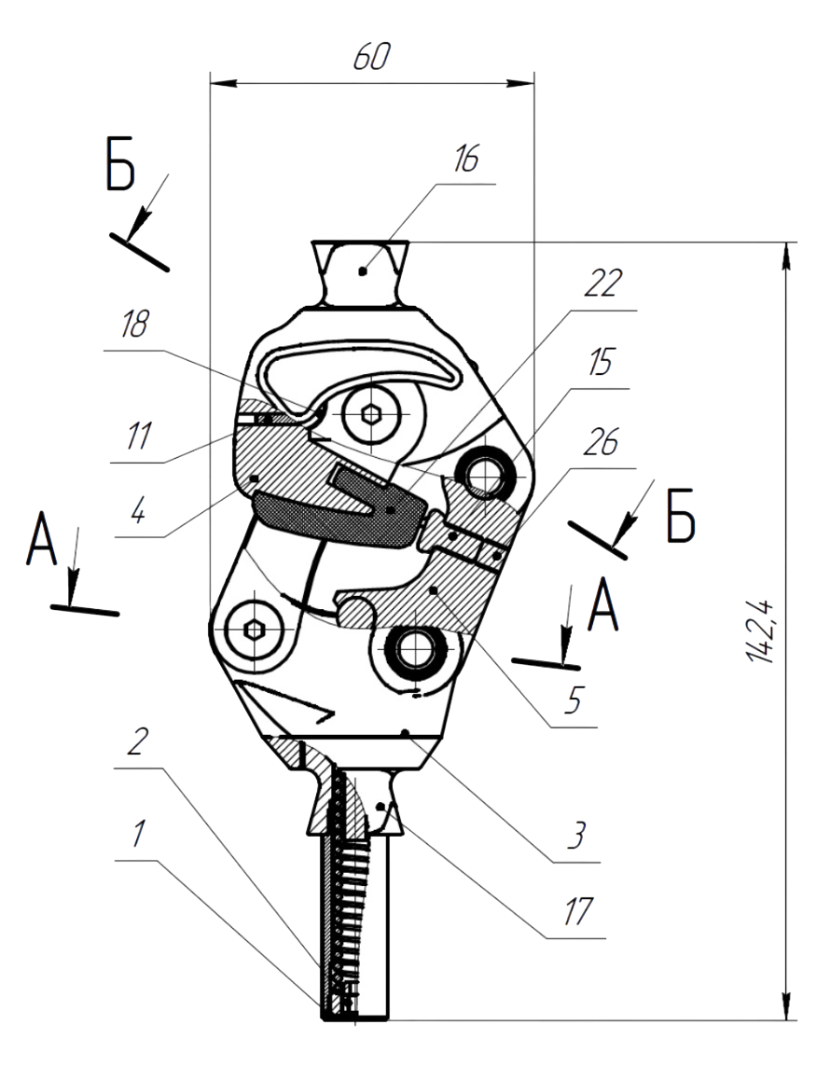

PC-1A drawing — PC-1A draw

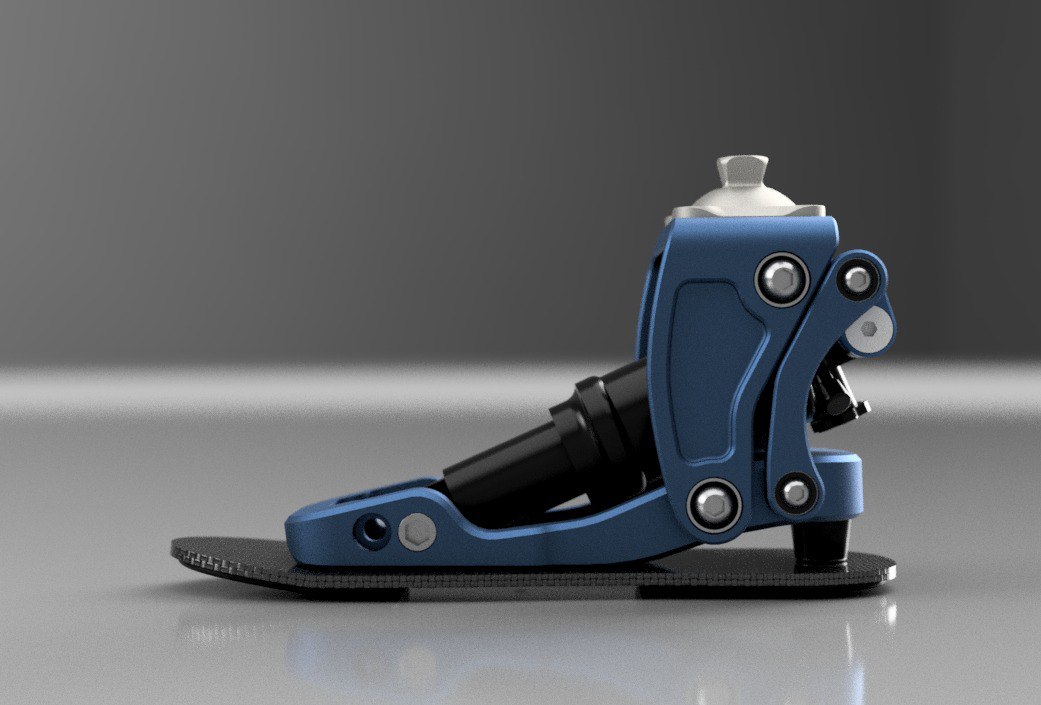

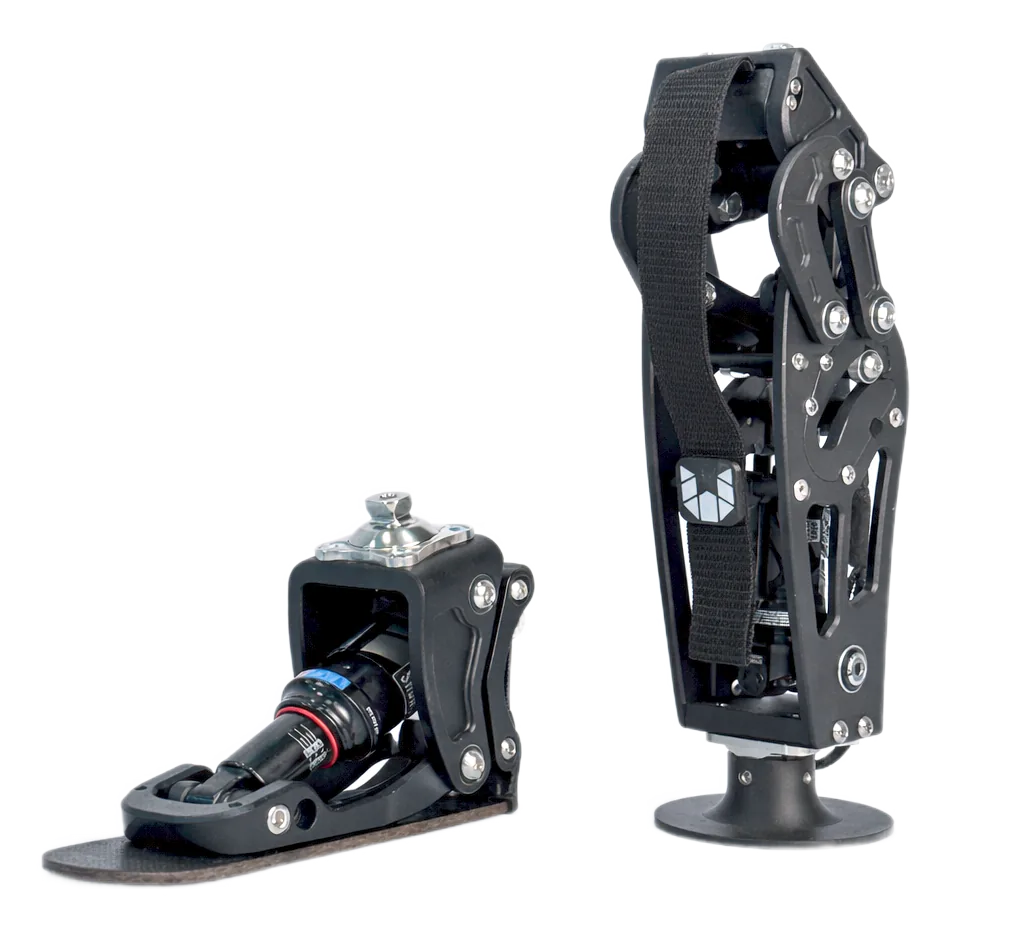

Adventure foot render side

Adventure Foot

Specification

Material: aluminum alloy.
Patient weight: up to 125 kg.
Load level: R6 (ISO 10328).
Build height: 130 mm.
Operating temperature range: −40 °C to +40 °C.
Service life: 2 years.
Shock absorption and load damping.

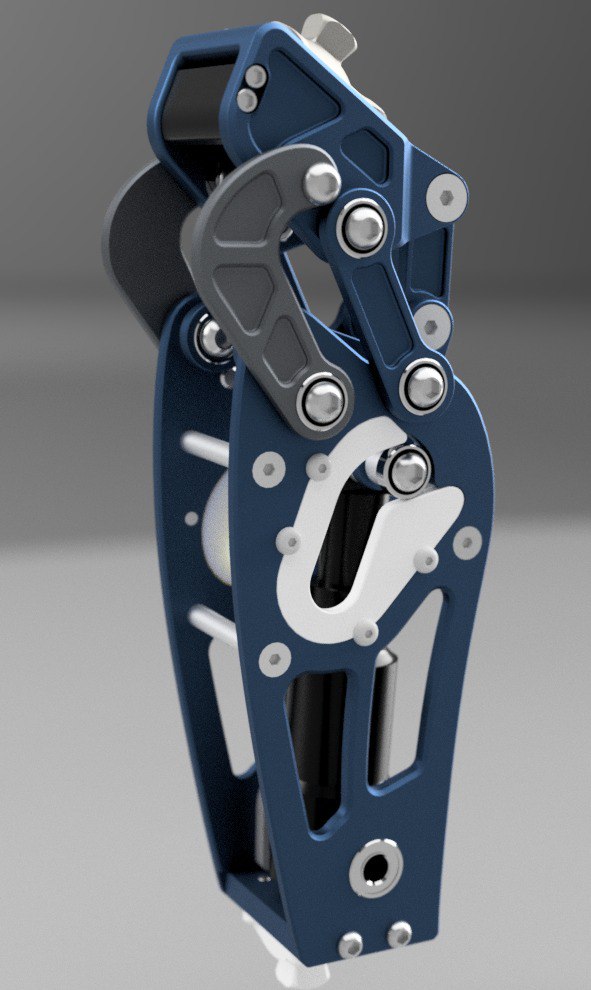

Adventure knee

Adventure Knee

Specification

Material: aluminum alloy.
Patient weight: up to 85 kg.
Load level: R4 (ISO 10328).
Build height: 330 mm.
Operating temperature range: −40 °C to +40 °C.
Service life: 2 years.
Shock absorption and load damping.
Adjustable hydraulic control of flexion and extension.

Adventure test — Adventure Test

Snowboard

Jumping

Wakeboard Fest
